The Best 2 Ball Valve Price

The American Valve P200SUE single union ball valve is lightweight and compact making it suitable for plumbing, pool and spa applications. The union ring has an EPDM O-Ring. The self-lubricating PTFE seats are resistant to most chemicals and corrosion. This valve is not recommended for service or test with compressed air.

This ¼” stainless steel motorized ball valve is affordable enough for the home hobbyist, while durable enough for titans of industry. The valve body and stem are made of SS304 steel, which is lead free and safe for drinking water. It actuates using 9V to 24V of DC power, and will fully open or fully close in 3-5 seconds. Once in position, it automatically stops using energy. This is important as it will never overheat.This is a key difference between motorized ball valves and solenoid valves. Most solenoid valves are constantly energized, while these electrical ball valves are not, making them a safer and more eco-friendly option.
The attention to detail in this valve extends beyond the metal. The casing is rated as IP65. This ingress protection rating is used to define how well the casing does at sealing. For U.S. Solid motorized ball valves, they have the highest IP rating possible against solids (6), representing a seal that protects against all solids, even dust. For water, the rating (5) represents seal protection against water spray from all directions. This means the casing and body are all built to last.
Motorized ball valves have a variety of interesting and convenient uses. Many choose to use them in home water systems. They are also a great tool for use in home automation projects. Home brewery systems typically need several of these valves, and the SS304 is great for fermented liquids. Lastly, all of the U.S. Solid motorized ball valves work well with Arduino automation systems.
Specifications
Valve Material: SS304
Ball Seat: PTFE
Seal: EPDM
Close/Open Time: 3-5 Seconds
Working Voltage: 9-24V DC
Max Power: 2W
Max Torque: 2 N m
Max Pressure: 1.0Mpa
Temperature range for Flow Medium: 0°C to 90°C
Ambient Temperature Range: -10°C to 40°C
Enclosure Rating: IP65
Life Expectancy: 80,000-100,000 Cycles
Bore Type: Standard
Thread Type: NPT

SHMONO valve, committed to providing each customer with the highest standard of customer service, with the highest value for money in the valves industry.
Our purpose is providing the highest quality shopping experience for customers.

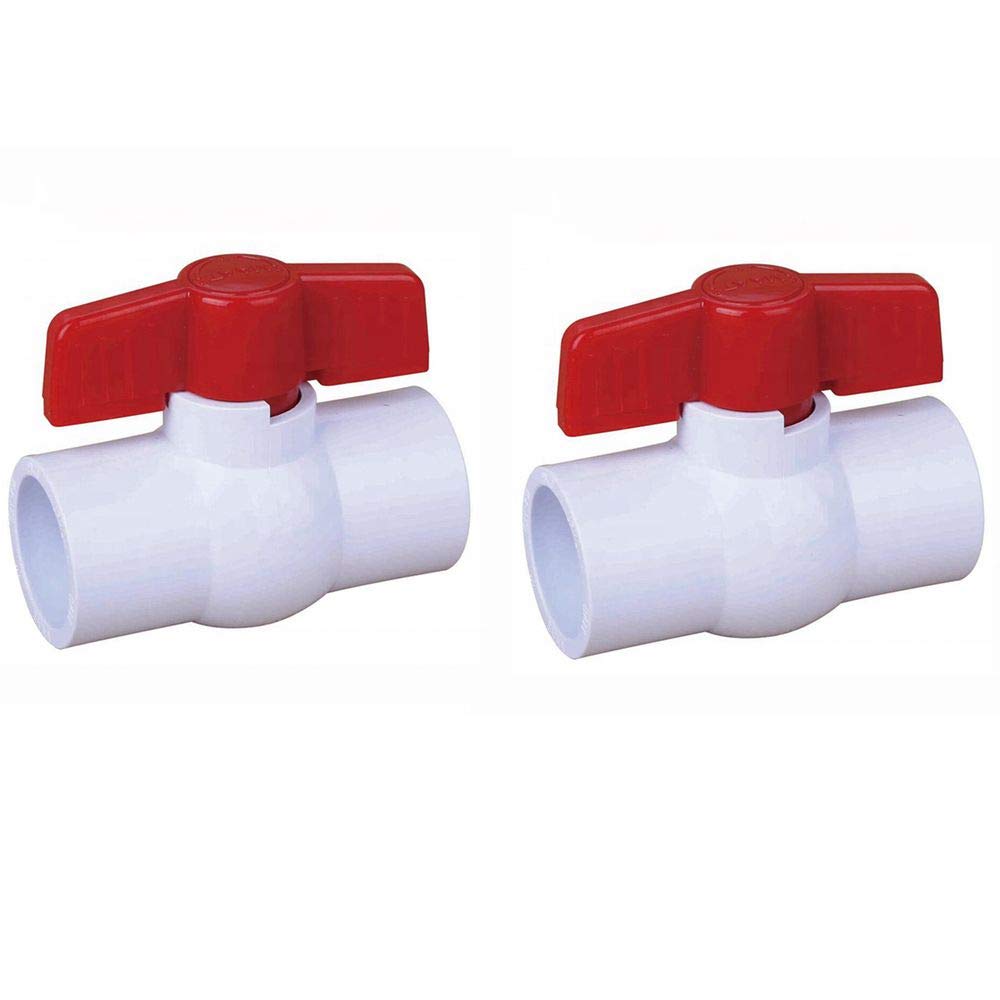

Main Material：PVC
Size：1/2″
End Connection：Socket (Slip)
Woking Pressure：PN16 @ 73F degree
Certificate：ISO

Advantages：
1.Simple quick tightening joint ensure fast and safe connections.
2.Corrosion-free and rust-free.
3.High Working Pressure: 1/2″ PN16 @ 73F degree.
4.Low Torque, easy to operate.
5.Easy to install to and working with tank or soft tank.
6.Rapid 1/4-turn on/off control.
7.Durable PVC body and rugged PP handle.

Application：
*Water project in construction.
*Water treatment for swimming pool.
*Water project in pisciculture.
*Irrigation for agriculture.

How To Use:
First step, clear both end of the valve.
For socket type, there need to use the corresponding glue on the socket wall again with the pipe and stick them together.
For screw type, there need to use teflon tape winding outer thread screw parts, then smooth twist in the threaded.

100% SATISFACTION GUARANTEED
We guarantee that the quality of our products will be checked before shipment.

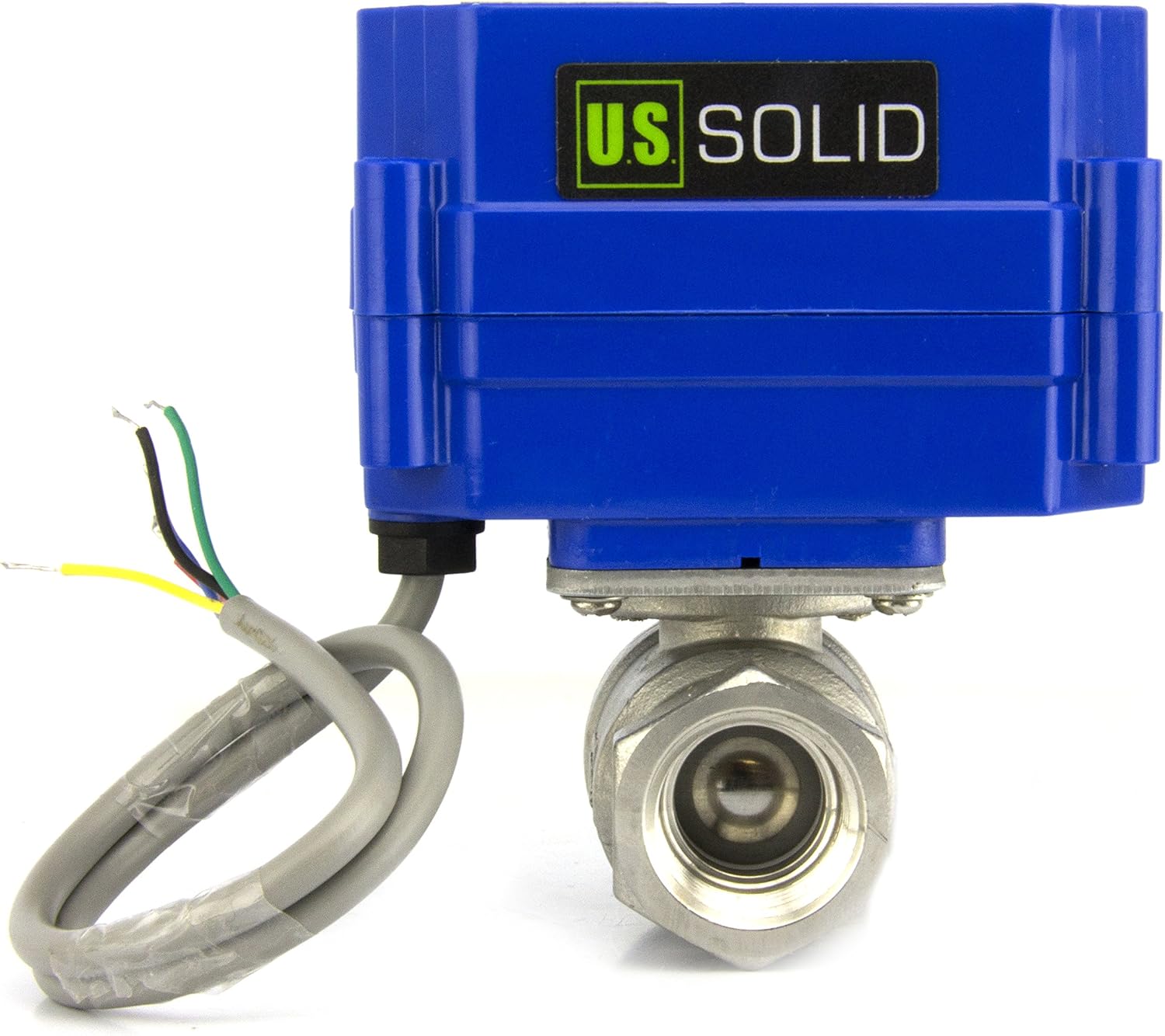

This ½” stainless steel motorized ball valve is affordable enough for the home hobbyist, while durable enough for titans of industry. The valve body and stem are made of SS304 steel, which is lead free and safe for drinking water. It actuates using 9V to 24V of DC power, and will fully open or fully close in 6-8 seconds. Once in position, it automatically stops using energy. This is important as it will never overheat.This is a key difference between motorized ball valves and solenoid valves. Most solenoid valves are constantly energized, while these electrical ball valves are not, making them a safer and more eco-friendly option.
The attention to detail in this valve extends beyond the metal. The casing is rated as IP65. This ingress protection rating is used to define how well the casing does at sealing. For U.S. Solid motorized ball valves, they have the highest IP rating possible against solids (6), representing a seal that protects against all solids, even dust. For water, the rating (5) represents seal protection against water spray from all directions. This means the casing and body are all built to last.
Motorized ball valves have a variety of interesting and convenient uses. Many choose to use them in home water systems. They are also a great tool for use in home automation projects. Home brewery systems typically need several of these valves, and the SS304 is great for fermented liquids. Lastly, all of the U.S. Solid motorized ball valves work well with Arduino automation systems.
Specifications
Valve Material: SS304
Ball Seat: PTFE
Seal: EPDM
Close/Open Time: 3-5 Seconds
Working Voltage: 9-24V DC
Max Power: 5W
Max Torque: 6 N m
Max Pressure: 1.0Mpa
Temperature range for Flow Medium: 0°C to 100°C
Ambient Temperature Range: -5°C to 40°C
Enclosure Rating: IP65
Life Expectancy: 80,000-100,000 Cycles
Bore Type: Full
Thread Type: NPT

Product Description:

Maximum Working Pressure: 1.0MPa
Working Current: Less than 500MA
Open/close Time: 3-5S
Actuator Material: Engineering Plastics
Sealing Material: EPDM and PTFE
Actuator Rotation: 90 Degree
Install By Any Angle
Max. Torque Force: 2 N.M
Environment Temperature:5~122F
Liquid Temperature: 32~194F

Regular Types:

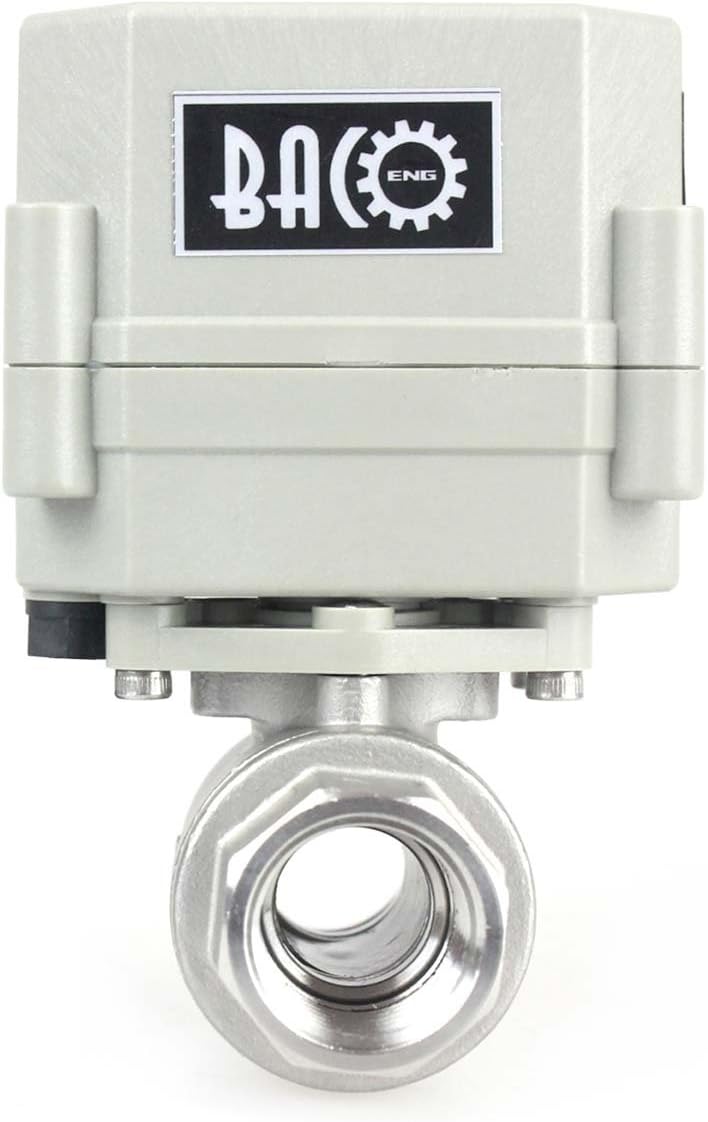

BACOENG DC3-6V CR04 Two Wires+Auto Return When Power Off Electric Ball Valve
BACOENG DC12V CR01 Two Wires Control Electric Ball Valve
BACOENG DC12V CR02 Three Wires Control Electric Ball Valve
BACOENG DC12V CR05 Five Wires Position Feedback Electric Ball Valve
BACOENG AC/DC9-36V CR202B Two Wires Spring Return When Power Off Electric Ball Valve
BACOENG AC/DC9-24V CR04 Two Wires Spring Return When Power Off Electric Ball Valve
BACOENG AC110V/220V CR04 Two Wires Spring Return When Power Off Electric Ball Valve
BACOENG AC110V/220V With Plug CR202C Spring Return When Power Off Electric Ball Valve
BACOENG AC110V/220V Time Control Electric Ball Valve
BACOENG DN32/DN40/DN50 CR202 Electric Ball Valve
BACOENG 3 Way L Port Five Wires Position Feedback Electric Ball Valve

Technical Parameter:
Product size: 1/2″ FNPT DN15
Maximum Working Pressure: 1.0MPa
Circulation Medium: Water,Oil,Gas
Rated Voltage: DC12V
Wiring Control Methods:CR01/CR02/CR04
Working Current: 80MA
Open/close Time: 3-5 sec.
Valve Body Material: Stainless Steel 304
Actuator Material: Engineering Plastics
Sealing Material: EPDM
Cable Length: 0.5m
Environment Temperature:-15~50 Celsius
Liquid Temperature: -5~100 Celsius
Manual Override: NO
Indicator: NO
Protection Class: IP65

Application:
1.HVAC
2.Water treatment
3.Chemical process
4.Small industrial equipment for automatic control
5.Replacing solenoid valve, particularly when solenoid cannot work reliably
6.Automatic control systems
7.Efficient water-saving, water equipment
8.Solar hot water project
9.Regular watering the flowers, Timing humidifying,timing of drainage of Air compressor .

Features:
1).Smart shape, Perform reliably, large output torque, as long as 50000-100000 times , convenience for all kinds of requirements.
2).Float ball design, no leak, large flow, the valve is bi-directional ball valve , regardless of inlet and outlet , most suitable for heavy dirt and long time no action.
3).The conditions that solenoid valve can not be worked.
4). High protection class, can be worked in moist conditions.
5).POM cooperate with metal gear, the POM gear is used in high-speed level to reduce noise, At the same time metal gear is applied at the low-grade to ensure the reliability of the gear.
6).Electrical and mechanical limit integrated design, accurate localization , high consistency , put an end to swing of valve.

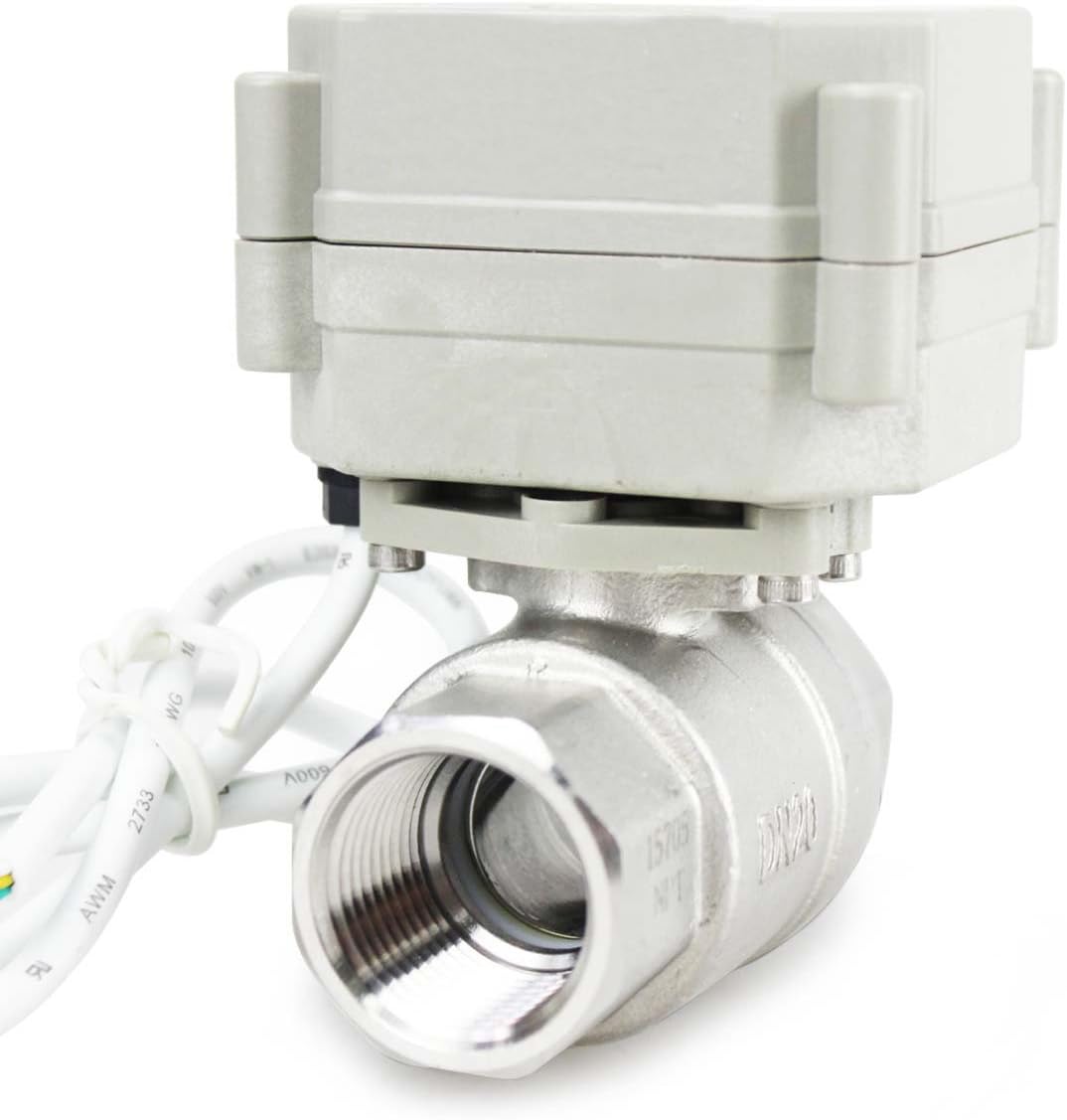

Technical Parameter:
◎Model: T20-S2-B;
◎Working Voltage: 9-24VAC/DC;
◎Valve Dimension:3/4″ NPT Female Thread Connection, 20mm(0.79in) Full Bore;
◎Wiring Diagram:CR5-02(2 Wires Control, Installed With Position Feedback Wires);
◎Valve Body Material: Stainless Steel 304(CF8) ;
◎Actuator Material: Engineering Plastics;
◎Open/Closed Time: About 3-5Sec.;
◎Suitable Media: Air, Water, Oil;
◎Power: Max 2 Watts;
◎Manual Override: Yes;
◎Indicator: Yes;
◎Working Current: Max 500Ma When Action, Cut Off Current When Arrived At Place;
◎Max. Torque Force For Aucator: 2 N.M;
◎Cables Length: 0.5 Meters;
◎Max Working Pressure:145PSI(1.0MPA);
◎Liquid Temperature: 32°~212°F (0°~100°C);
◎Environment Temperature:5~122F(-15°~50°C);

Application:
◎HVAC;
◎Water Treatment;
◎Chemical Process;
◎Small Industrial Equipment For Automatic Control;
◎Replacing Solenoid Valve, Particularly When Solenoid Cannot Work Reliably;
◎Automatic Control Systems;
◎Efficient Water-Saving, Water Equipment;
◎Solar Hot Water Project;
◎Regular Watering The Flowers, Timing Humidifying, Timing of Drainage of Air Compressor.

Features:
◎Smart Shape, Perform Reliably, Large Output Torque, As Long As 50000-100000 Times , Convenience For All Kinds Of Requirements;
◎Float Ball design, No Leak, Large Flow, The Valve is Bi-directional Ball Valve , Regardless of Inlet And Outlet , Most Suitable for Heavy Dirt and Long Time No Action;
◎The Conditions That Solenoid Valve Can Not Be Worked;
◎High Protection Class, Can Be Worked In Most Conditions;
◎POM Cooperate With Metal Gear, The POM Gear is Used in High-Speed Level to Reduce Noise, At The Same Time Metal Gear is Applied At The Low-Grade To Ensure The Reliability of The Gear;
◎Electrical and Mechanical Limit Integrated Design, Accurate Localization ,High consistency , Put an End to Swing of Valve.
