Top 9 2 Inch Electric Water Valve

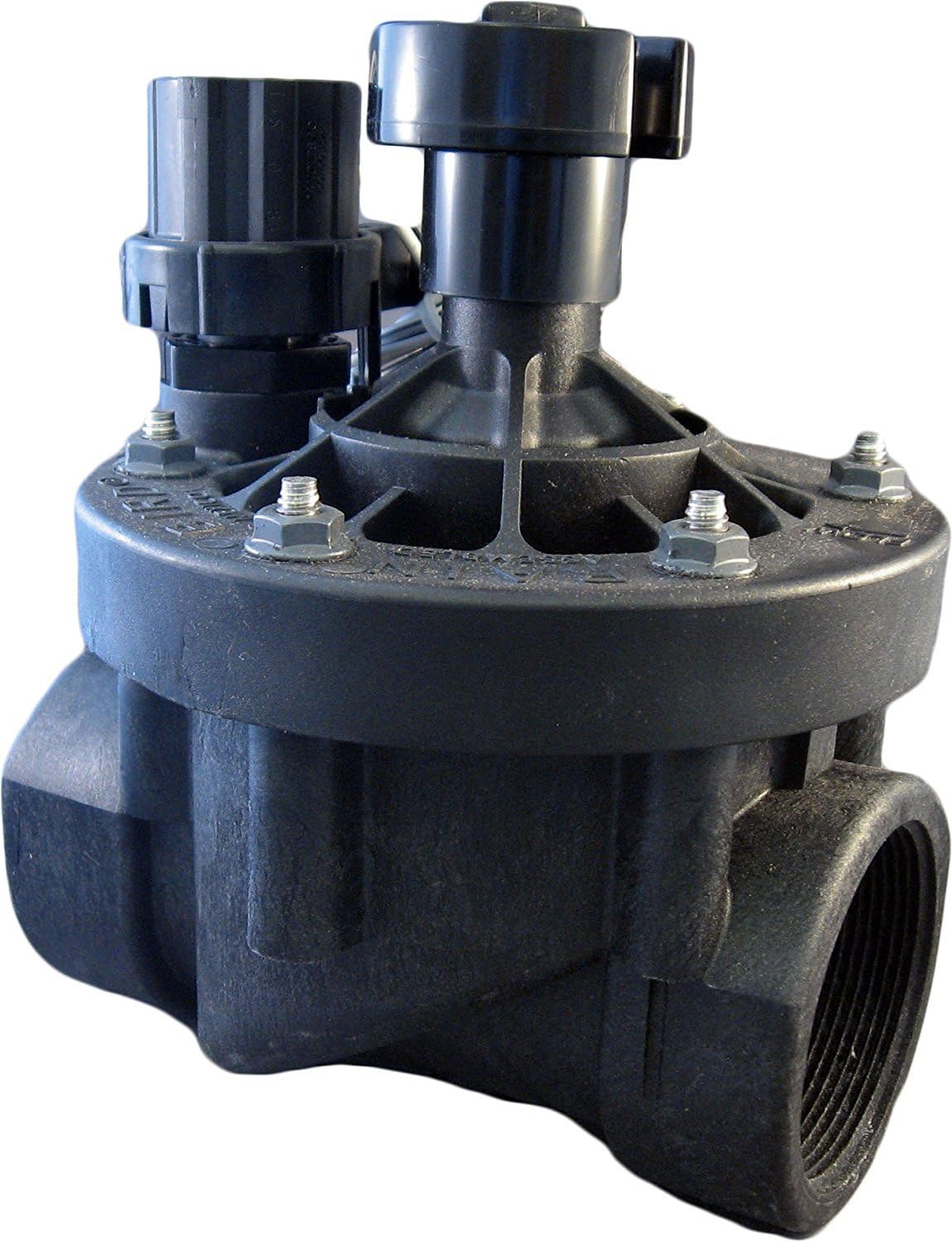

Industrial-strength glass-filled nylon globe valve for commercial irrigation applications. The PEB Series is our most durable plastic irrigation valve

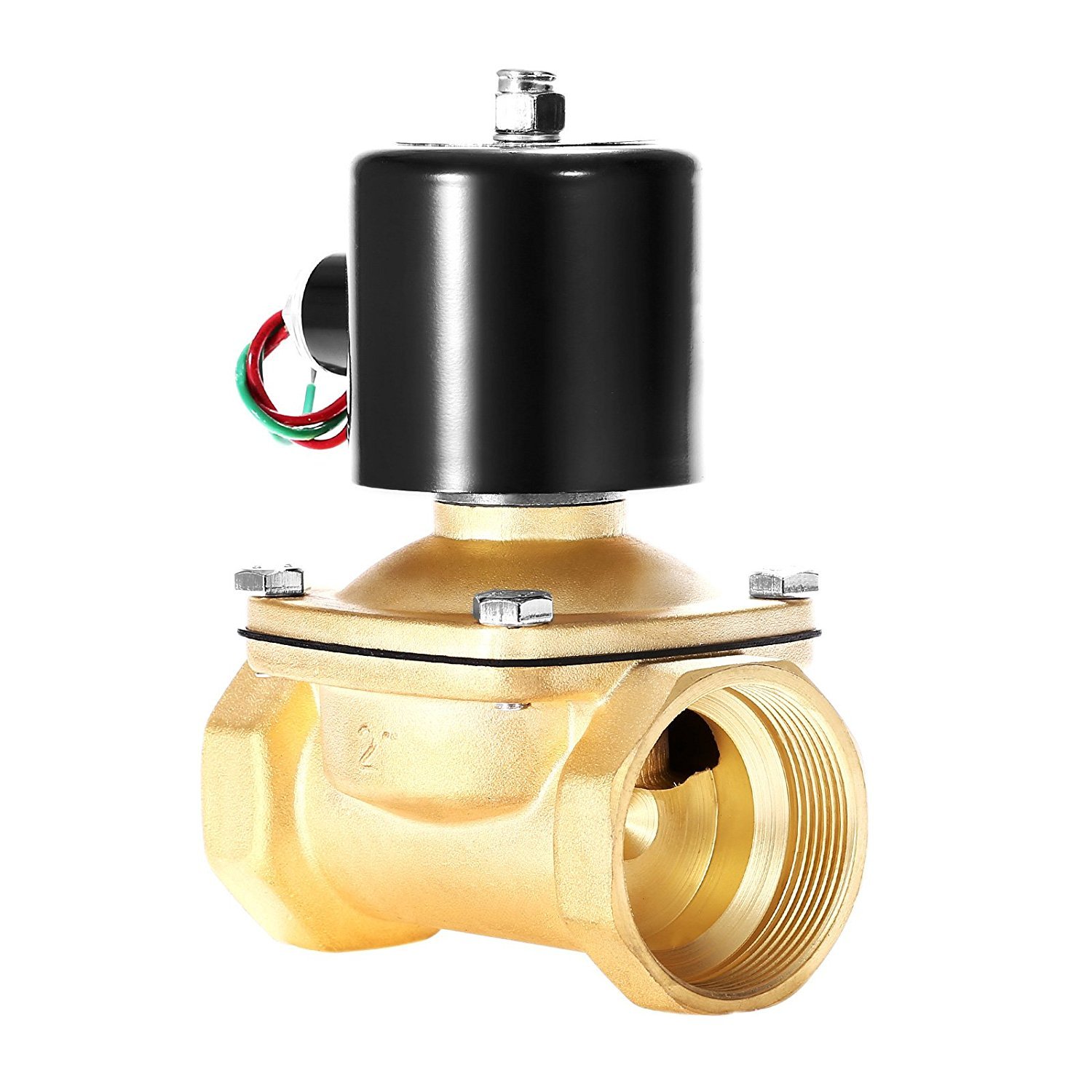

2″ NPT Electric Solenoid Valve for Water Air Gas

electric solenoid valve is constructed with a durable brass body, two-way inlet and outlet ports with three-quarter inch (3/4″) female threaded (NPT) connections, and heat and oil resistant Viton gasket.The coil uses alternating current and energizes at 110 volts AC.Semi-direct lift valve operates from 0 PSI to a maximum pressure of 145 PSI.Suitable for use with hot or cold water, gases, air, very low viscosity fluids (< 20 cst), oils and hydrocarbons, e.g., gasoline, kerosene, or diesel fuel.

Item Specifications

Material: Brass

Model: 2W-500-50

Thread type:NPT

Service Voltage: AC 110V

Pipe Size: 2Inch

Operation Type: Semi-Direct Lift Valve

Coil Connection: 5.5″ Lead Wire

Temperature Range: 20 – 265°F

Pressure Range: 0 – 145 PSI

Working Medium: Air,Gas, Water, Oil

Package Includes

1 x Solenoid Valve

1 x Instruction

Specifications
Body Material Brass
Components Stainless Steel
Seal Material Viton Diaphragm
Operation Type Semi-Direct Lift Valve
Coil Connection 5.5″ Lead Wire
Orifice Size 50 mm
Cv Value 48
*Duty Cycle 100% but not indefinitely
Weight 7 lbs
Height 6.50″
Length 5.30″ port to port
Width 4.25″

Function Normally Closed
Connection 2” Inch FNPT
Temperature Range 20 – 265°F
Pressure Range 0 – 145 PSI
Power Requirements 40VA – 40 Watts
*Suitable Media
Water – Air – Gas – Etc
Connection – No Polarity, + and – can be interchanged.

The valve timing is uncertain, however it is fast acting. Less than one second.
Mounting position is preferably coil up but can be mounted in any position.
*Consult a chemical compatibility expert for correct seal and valve body material choice.
*Duty Cycle – Like most solenoid valves the coil will become hot to the touch when left on continuously. The temperature will stabilize without failure. Leaving the valve powered on for long periods of time will reduce the life of the coil. Whenever possible the valve should be installed in a well ventilated are to increase the life of the coil. The valve is not intended to be left energized as a fail-safe for power outages. In this case please contact us for other options.
A pre-filter is always recommended to keep the diaphragm free from debris and the valve functioning properly.

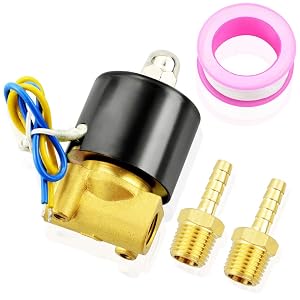

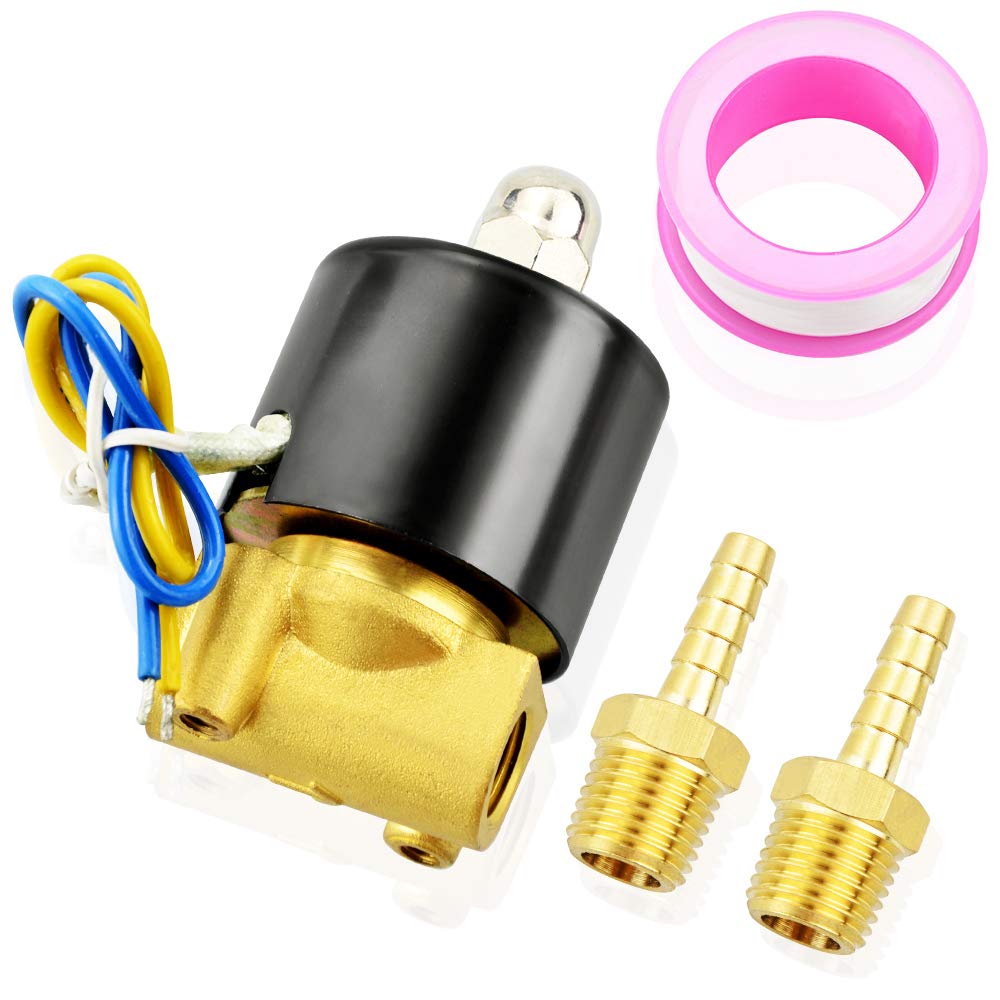

This 12V DC brass electric solenoid valve easily replaces broken valves for use with water, air, and other low viscosity fluids. Durable brass construction and a quality copper solenoid are made to last. This valve is N/C (normally closed), meaning it is closed when power isn’t supplied. The unit operates on 12V DC power and can withstand temperatures of 23F to 176F. This unit fits a 1/2″ NPT thread.

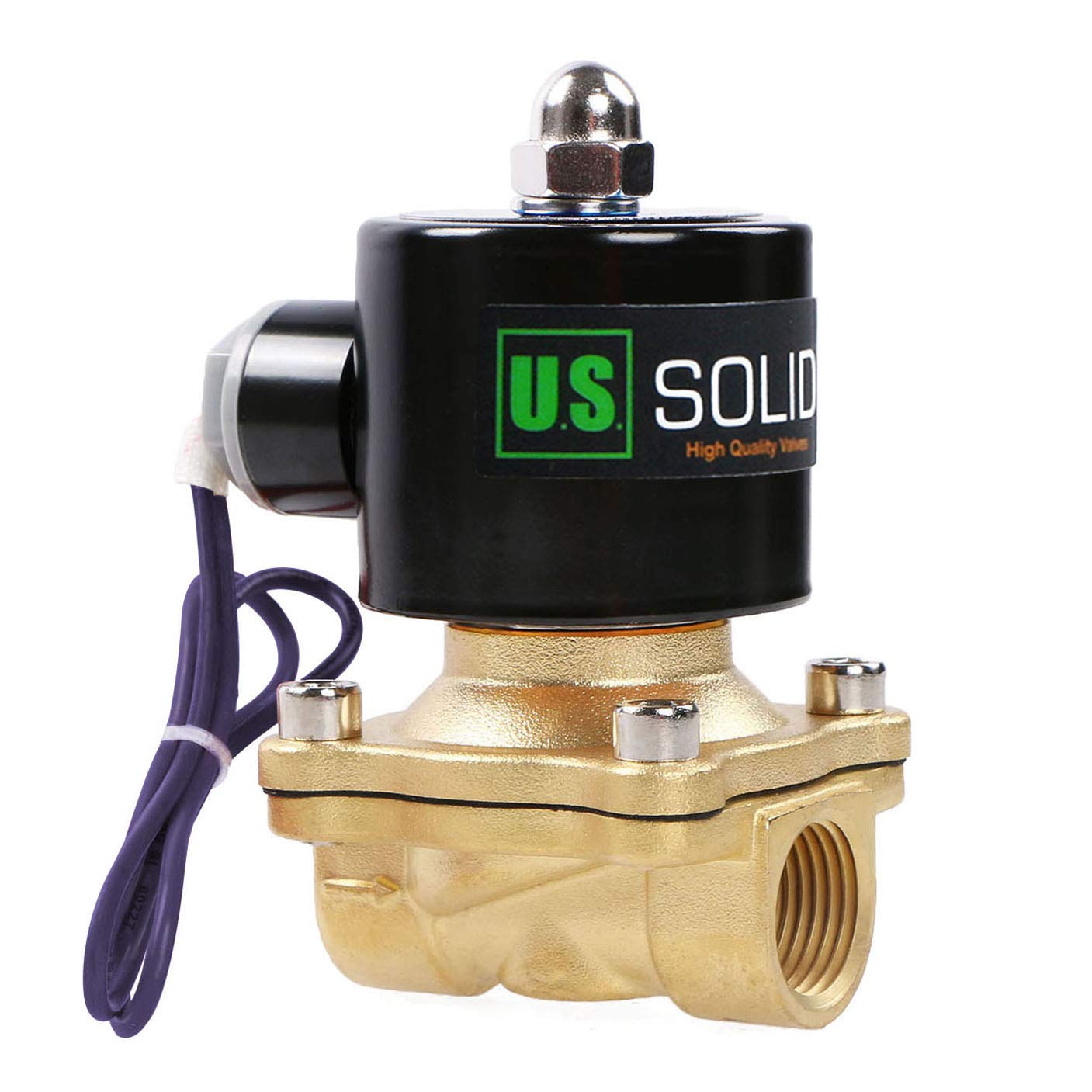

U.S. Solid normally closed (N/C) electric solenoid valve is constructed with a durable brass body, one-half inch (1/2″) female threaded (NPT) connections, and heat and oil resistant Viton gasket.

Suitable for use with hot or cold water, gas, air, very low viscosity fluids (< 20="" cst),="" oils="" and="" hydrocarbons,="" gasoline,="" kerosene,="" or="" diesel="" fuel.="">

Customers chose this general purpose valve for: do-it-yourself projects, moderate temperature applications, harsh chemicals, flow control for irrigation systems, reverse osmosis systems, or home brewing.

Brand: U.S. Solid

Model: USS2-00001

Size: 1/2″

Flow Aperture: 16 mm

Body Material: Brass

Gasket / Diaphragm / Seal: VITON

Rated voltage: DC 12 V, ± 10%

Current: 1.667 A

Power rating: 20 W

Operation Type: Semi-direct Lift Valve

Operation Mode: Normally Closed

Operational pressure range: 0 to 101 PSI / 0-0.7 Mpa (for Air, Water); 0 to 72 PSI / 0-0.5 Mpa (for Oil)

Flow capacity: 4.8 gallons per minute (GPM) of water at 60oF with a pressure drop of 1 PSI

Flow value: 4.8 Cv

Minimum operational temperature: 14 degrees Fahrenheit (-10 degrees Celsius)

Maximum operational temperature: 248 degrees Fahrenheit (120 degrees Celsius)

Suitable Media: Air, water, oil, natural gas, diesel fuel, kerosene etc. Can not be used in strong acid, strong base, waste water, industrial gas and other media containing many impurities.

Quality assurance: CE Certified

Valve is not intended to be energized continuously for more than 8 hours. This can lead to burnout of the coil, and malfunctioning of the valve.

Specifications:
Rated power: 5W, no need to divide the positive and negative poles
Working mode: quota system (that is, intermittent cycle work system, the longest continuous work for about 4 hours, can continue to work after stopping for ten minutes, there will be danger of burning coils for more than four hours)
Use fluid: (0-100 ° C) water
Flow characteristics of water: 0.02Mpa>1.5L/min; 0.10Mpa>7L/min; 0.30Mpa>12L/min; 0.80Mpa>20L/min
Insulation performance: The insulation resistance between the conductor and the non-conductor is greater than 100MΩ
Insulation class: Class E insulation
Service life: ≥500,000 times (laboratory data), ≥300,000 times (actual normal use)
Valve type: diaphragm (operated by Servo)
Usage: water and low viscosity fluids
Material: metal + plastic
External thread diameter: approx. 20mm
Screw hole pitch:25mm
Size: approx. 84 x 57mm (L x H)
Coil size: approx. 34 x 23mm (W x H)
Unit conversion: 1mm=0.039inch

Note:
Manual measurement, with small error. Please check size in detail before purchase.
Real colors may slightly differ from the pictures, as it depends on specific monitor settings and light brightness.

We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.

Package Includes: 2Pcs
