Product Description

This kit is designed to help electricians and HVAC technicians solve problems quicker. Test first for overheated electrical devices using an IR thermometer; then use electrical test tools to find out more about the problem.

From the Manufacturer

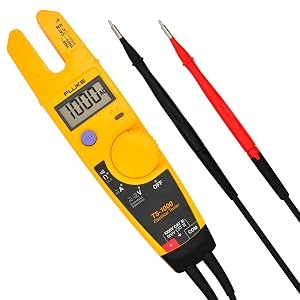

Fluke Corporation is the world leader in the manufacture, distribution and service of electronic test tools and software. Since its founding in 1948, Fluke has helped define and grow a unique technology market, providing testing and troubleshooting capabilities that have grown to mission critical status in manufacturing and service industries. From industrial electronic installation, maintenance and service, to precision measurement and quality control, Fluke tools help keep business and industry around the globe up and running. The Fluke T5-1000 electrical testers let you check voltage, continuity and current with one compact tool. With the T5, all you have to do is select volts, ohms, or current and the tester does the rest. The open jaw current lets you check current up to 100 amps without breaking the circuit. Its tough test leads stow neatly in the back of the tester, making it easy to tote the T5 in your tool pouch. Detachable SlimReach test probes are customized for national electrical standards. The test leads accept optional accessories such as clips and specialty probes. The T5 has a bandwidth of 66 Hz, a voltage measuring ranges of AC 690 volts and DC 6, 12, 24, 50, 110, 240, 415, and 660 volts. The T5 meets safety category: UL, CSA, CE, VDE. The T5-1000 electrical test kit is sold one set per package, and is covered by a two year warranty.

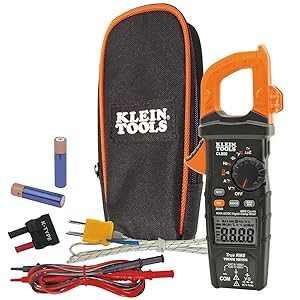

Klein Tools CL800 is an automatically ranging true root mean squared (TRMS) digital clamp-meter that measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features. Built to withstand a 6.6-foot (2m) drop. Low battery indicator and easily accessible battery compartment. Operating temp: 32-degree F to 104-degree F (0-degree C to 40-degree C). Operating altitude to 6562-foot (2000m). Includes carrying pouch, test leads, thermocouple with adapter and batteries. Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations. For more than 160 years, Klein Tools has manufactured premium-quality, professional-grade hand tools that deliver the performance, durability and precision needed to get the job done right. Our family of engineers, workers and craftsman continue to put six generations of expertise into every tool we create by using only the highest quality materials, superior workmanship, and keeping manufacturing as close to home as we can. Klein isn’t just the name of our company, it’s also our family name. And since we’re an American company that’s family-owned and family-run, you know you can count on us to be here tomorrow. Klein Tools doesn’t just make great products, we make great products that stand up to the demands of the professionals who use them every day … Since 1857. Voltage – 1000V AC, 1000V DC

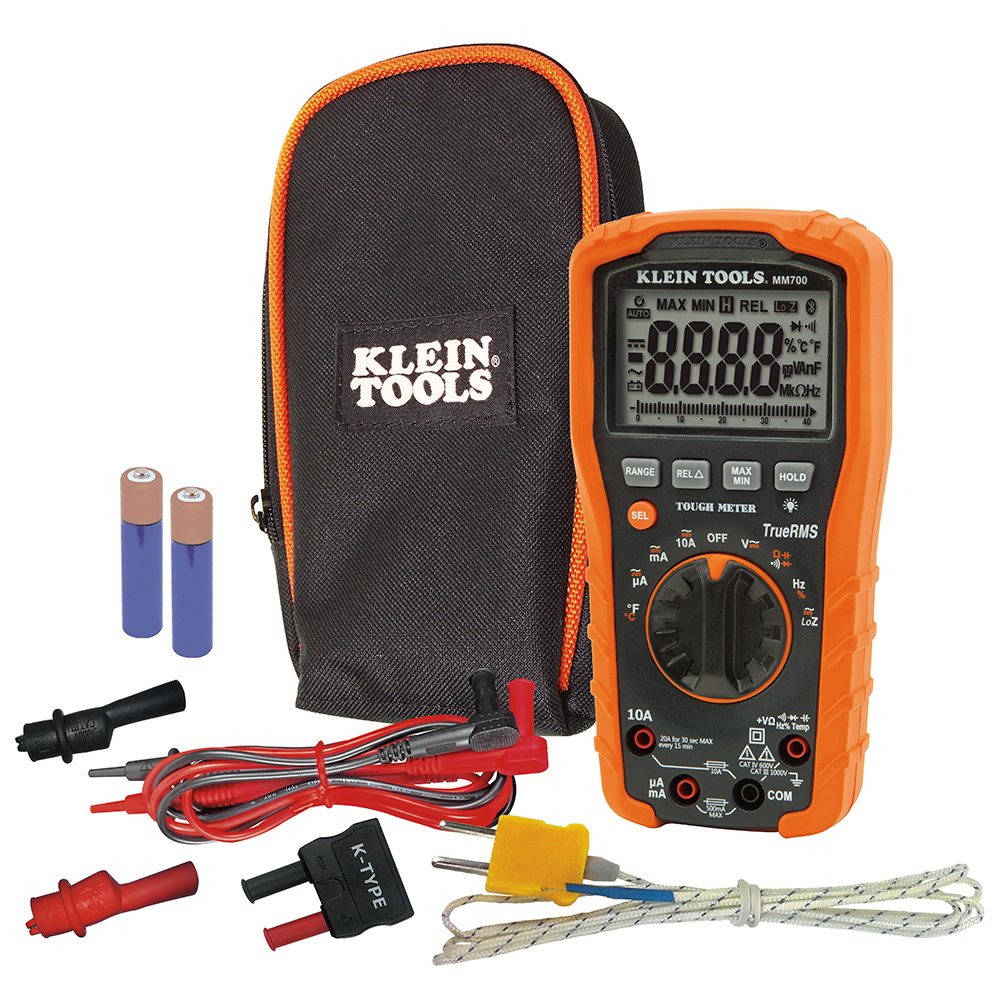

Klein Tools MM700 is an automatically ranging true root mean squared (TRMS) digital multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, diodes and continuity. Klein Tools Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features. For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations. Low battery indicator and easily accessible battery and fuse replacement compartment. Includes carrying pouch, test leads, alligator clips, thermocouple with adapter and batteries. For more than 160 years, Klein Tools has manufactured premium-quality, professional-grade hand tools that deliver the performance, durability and precision needed to get the job done right. Our family of engineers, workers and craftsman continue to put six generations of expertise into every tool we create by using only the highest quality materials, superior workmanship, and keeping manufacturing as close to home as we can. Klein isn’t just the name of our company, it’s also our family name. And since we’re an American company that’s family-owned and family-run, you know you can count on us to be here tomorrow. Klein Tools doesn’t just make great products, we make great products that stand up to the demands of the professionals who use them every day … Since 1857.

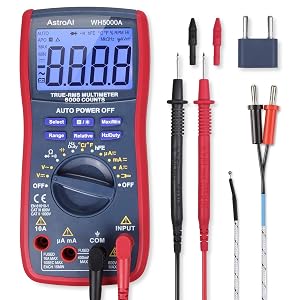

The AstroAI True RMS Multimeter is designed to be safely and accurately used by professionals in a commercial setting or weekend DIYer’s that need a little more power utility from their standard digital multimeter. It’s easy and safe to operate with advanced features built for measuring seemingly everything. Run tests on diodes and transistors while being able to measure voltage, current, resistance, continuity, capacitance, and frequency, all on one device. This multimeter is designed to be used in commercial settings, but can also be brought home to use with automotive or household electrical problems.

Specifications
Digital Display: 5 ¾ , 6000
Sampling Speed: 2 times per second
Range Selection: Auto or Manual

Polarity Indication
Overload Indication
Low Battery Indication
Power: 1 x 9V 6F22 Battery Included

Temperature Test: Yes
Transistor Test: Yes
Diode Test: Yes
Continuity Test: Yes
External Current Test: Yes
Capacitance: Yes
Frequency: Yes

Safety/Compliances: EN61010-1 CAT III 600V, CATII 1000V
DC Voltage: 600mV/6V/60V/600V ±(0.8%+3), 1000V (1%+5)
AC Voltage: 600mV ±(1.2%+8); 6V/60V/600V ±(1.2%+6); 750V ±(1.2%+8)
Temperature: -40°C~1370°C; -40°F~2000°F (1-5%+4 depending on temp)
DC Current: 600μA/6000μA/60mA/600mA ±(0.8%+5); 6A/10A ±(1.5%+3)
Transistor hFE: PNP & NPN (lb≈2μA; Vce≈1V)
Resistance: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ ±(1.5%+3); 60MΩ ±(1.5%+5)
Capacitance: 60nF/600nF/6μF/60μF/600μF/60mF
Frequency: 0~60MHz ±(1%+5)

Package Includes
1 x AstroAI WH5000A True RMS Digital Multimeter
1 x Test Leads (Pair)
1 x K-Type Thermocouple
1 x Multi-Function Socket
1 x User Manual

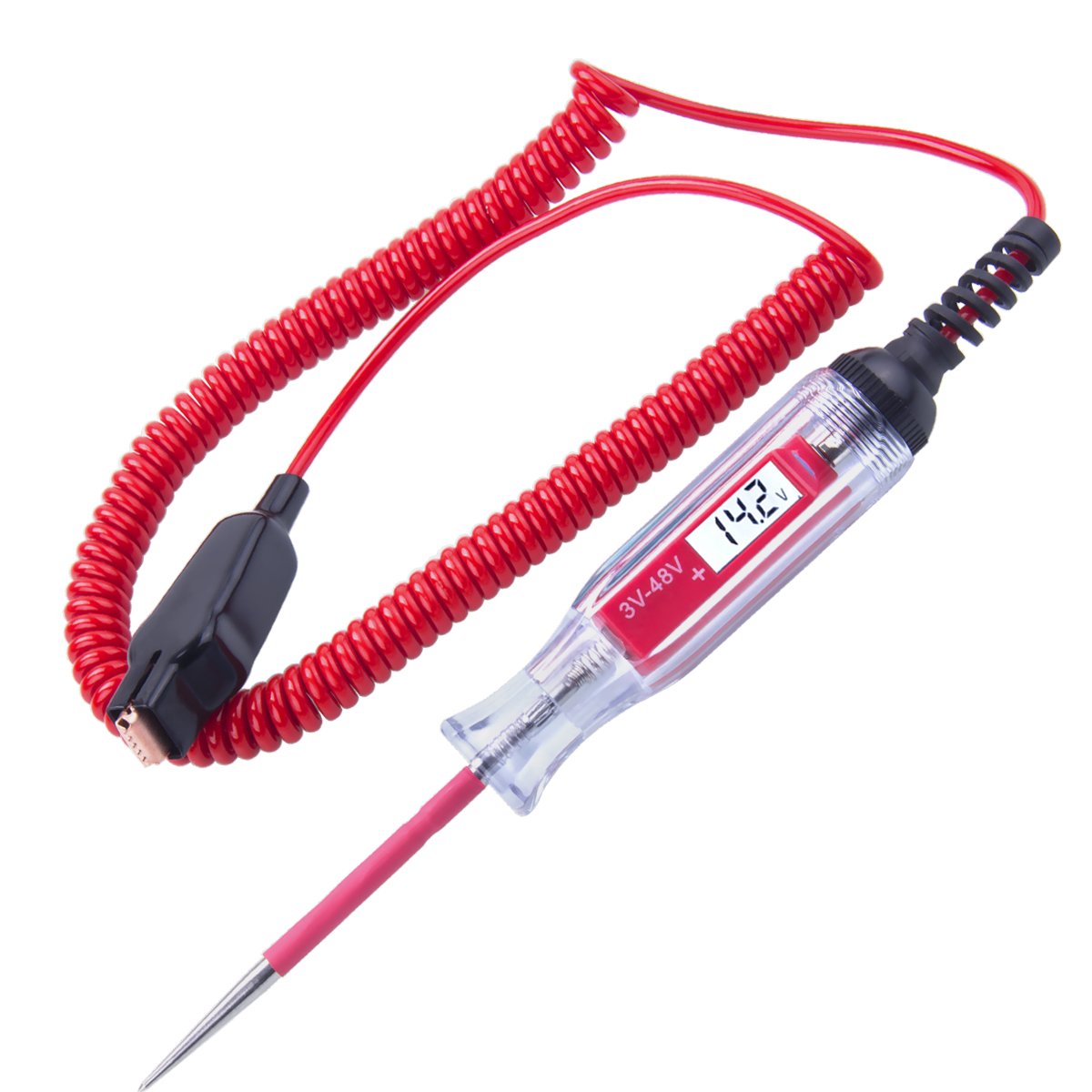

Jastool professional digital Circuit 3-48V Tester Designed for car electrical circuits,automotive battery, battery charging systems,ignition systems,which is a must have tool for any automotive engineer ,electronic engineer or circuits DIY .
*3-48v widely use for circuits test.
*.1 Accuracy voltage reading on white Backlit digital display.
*.Made with sharp stainless steel probe for piercing wires, for hard to reach areas.
*.Portable 140 In m long enough PU spring wire for easy operation
*.Constructed with acetate fiber, high toughness and shatter-proof.

Please Note
This is a negative mode one-way current circuit tester,when do measuring please attach the clamp to the grounding or negative pole.

Edacity’s Digital Clamp Mustimeter makes household electricity maintenance safe and simple. While having the capability to test AC/DC voltage, resistance, continuity and diodes, the built-in clamp enables you to measure AC current without needing to break circuits to come into direct hazardous contact. With a capacity of 400amps, the clip can comfortably extend to test cords and wires up to 28 mm in diameter. The mustimeter also includes safely insulated test probes with plastic gripping for safer handling while measuring. and easier. This device is the perfect startup mustimeter for entry-level electricians, hobbyists, and general household /Compliances: IEC61010 CAT.II 600V, CAT.III 300V over voltage and double insulation Display: Maximum display 1999Range selection: Auto ranging Overload display: Display OL or Measurement Speed: Updates 3 times/ Opening: 28mm diameter Tested Max. Current Conductor Size: 26mm diameter Diode test: Yes Continuity test: Yes Battery Life: about 150hours (alkaline battery)AC Current:-Range and Accuracy: 2A{4A, ± (2%+8)}, 200/400A ± (1.5%+5)- Overload Protection: 400A rams AC Voltage:- Range and Accuracy: 2/20/200V ± (1.2%+5), 600V± (1.5%+5)- Input Impedance: 10 MΩPackage Includes1 x Edacity Digital Clamp Meter2 x Test Leads (a pair)2 x AAA 1.5V batteries (installed)1 x Carrying Bag1 x User Manual

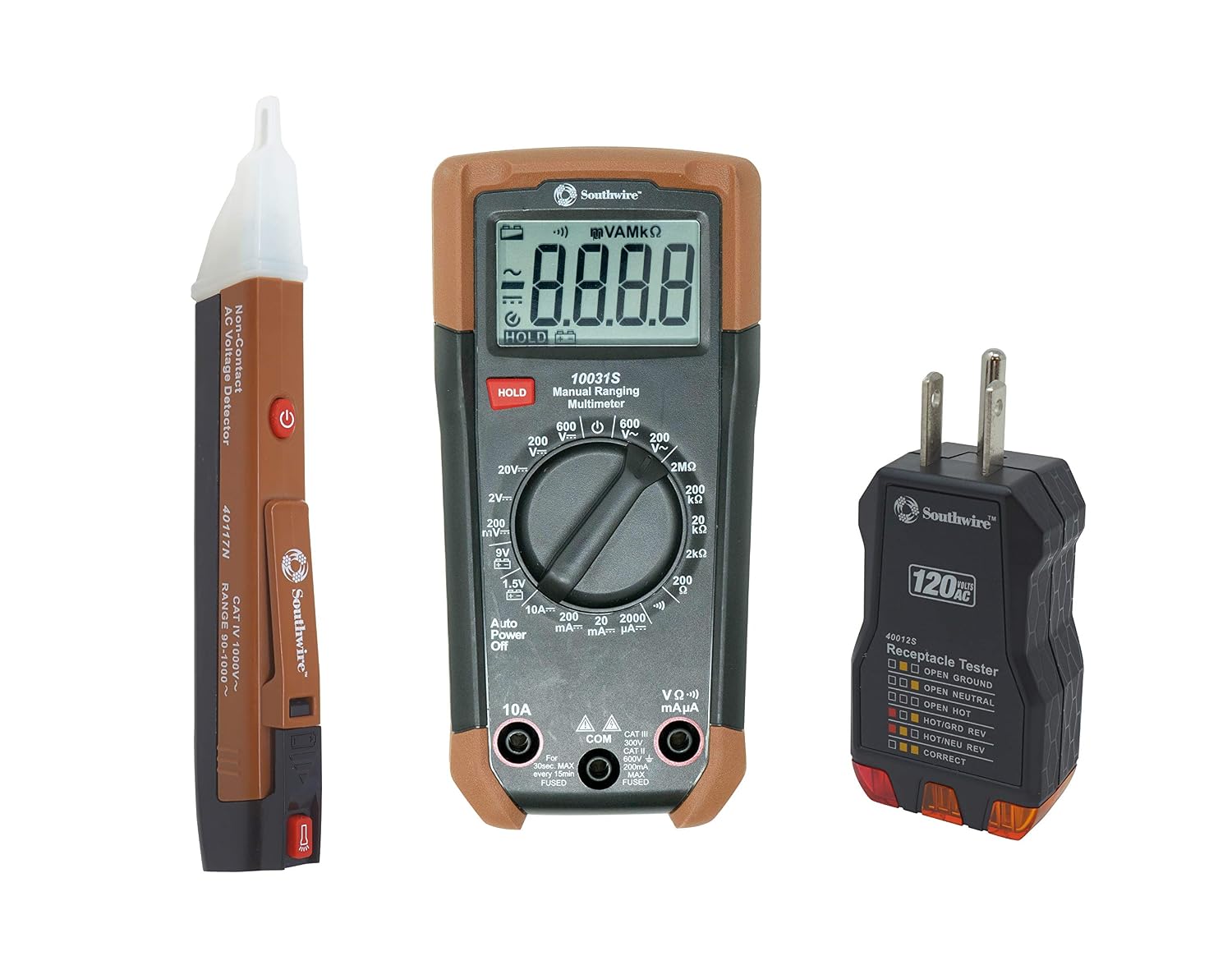

South wire 10037K 900-100v test kit, 6-test-in-1 receptacle Tester, 600V AC/DC voltage range multimeter, 90-1000v AC Voltage detection range, 5-year warranty, 6-foot drop tested

Do It All, and Then Some

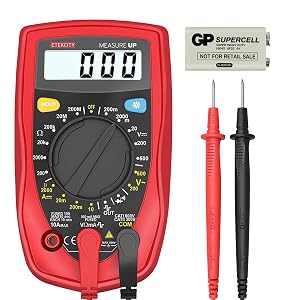

The Etekcity MSR-R500 Digital Multimeter is a practical tool for electricians, hobbyists, and general household use. It is easy to operate and features many different functions for measuring current, voltage, and resistance, as well as continuity, transistor, and diode testing. It can be used to diagnose, assemble, and repair circuitry and wiring. Other features include a low battery indicator, continuity buzzer, and overload protection. It’s tough rubber sleeve protects it from the drops and falls associated with the toughest jobs.

Built for Everyday Use

A Data Hold function keeps the measurements displayed on the MSR-R500 while you record them and a larger display makes the MSR-R500 multimeter even easier to read. Add in the LCD backlight and protective rubber bumper and this is the meter for every job.

Specifications

Safety/Compliances: IEC61010 CAT.I 600V, CAT.II 300V, double insulation

Max.display: 1999, 3 1/2 digits

Range selection: Manual ranging

Overload display: Display OL

Sampling Speed: 2 times per second

Power: 1 x 9V 6F22 Battery Included (Low Battery Indication)

Diode Test: Yes

Continuity Test: Yes

Square Wave Output: Yes

Dimensions: 5.1″ x 2.9″ x 1.4″

DC Voltage: 200mV/2000mV/20V/200V ± (0.5%+2), 500V (0.8%+2)

AC Voltage: 200V/500V ± (2%+10)

DC Current: 2000μA/20mA ± (1%+2), 200mA ± (1.2%+2), 10A ± (2%+5)

Resistance: 200Ω ± (0.8%+5), 2000Ω/20KΩ/200KΩ ± (0.8%+2), 20MΩ ± (1%+5), 200MΩ ± [5%(reading-10)+10]

Package Includes

1 x Etekcity MSR-R500 Digital Multimeter

2 x Test Leads (pair)

1 x GP Supercell 6F22 9V Battery

1 x User’s Manual

Product Description

Safety is the number one priority on any job site. Sperry Instrument’s testing equipment can be put to good use ensuring that electrical equipment is properly installed and safe to operate. The condition of electrical installations can be established when contractors use test equipment. Any test unit that can be used to measure or review an application without coming in contact with a live conductor is a necessity. Testing equipment can be put to good use ensuring that electrical equipment is properly installed and safe to operate. Faulty installations can be lethal; the condition of electrical installations can be established when contractors use test equipment. Sperry Instrument is pleased to offer an innovative full feature line of test equipment designed to make electrical work faster and safer. The electrical testers below accurately identify and capture circuit continuity and voltage measurements. These testers are ideal for any electrical professional or to have at home.

From the Manufacturer

Non contact sensing circuit.
