Top 9 Tx1510a Pressure Washer Pump

3400 RPMD Version 1-Inch, Hallow Shaft With Gas Engine Flange Unloader- VR35Thermal Relief Valve Max GPM 4. 0Max PSI 4000

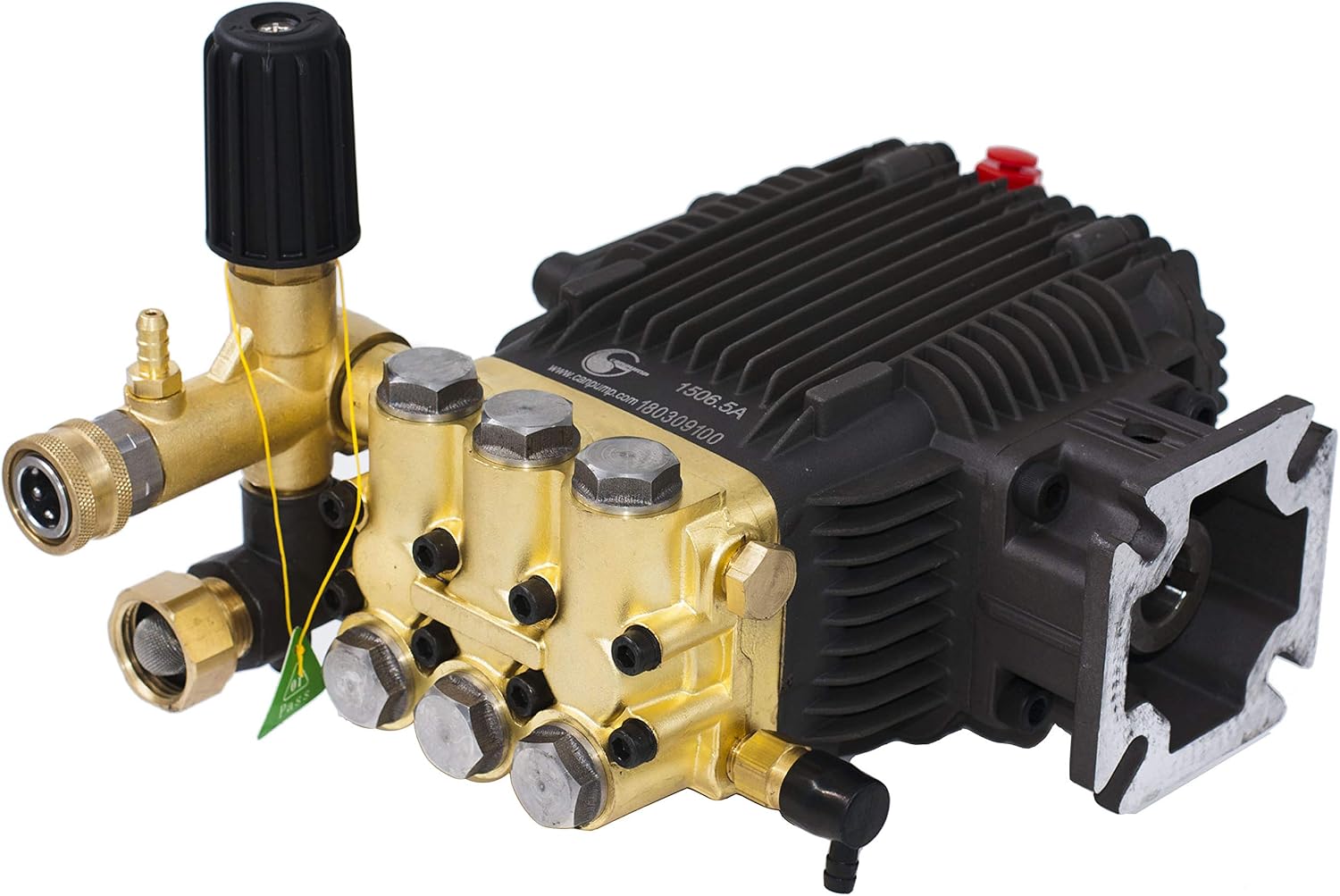

This RSV series pump is designed for direct drive on gasoline engines ranging from 11 h.p to 13 h.p. It is intended for use on medium to heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 500 hours at maximum performance of 4 gpm at 4,000 psi.
The RSV series features a compact and efficient intergraded unloader valve and fixed chemical injector. The RSV is a result of our combined 60 years of pumps building experience and expertise. Kit Includes: RSV4G40HDF40EZ – Pump AR7365 – 3/8″” M Nipple AR7366 – 3/4″” F Nut AR7369 – Inlet Filter DETHOSE-FIL – Detergent Hose with Filter AL-QC3/8B – Quick Connect Coupler

RSV4G40HDF40EZ – Pump
AR7365 – 3/8″ M Nipple
AR7366 – 3/4″ F Nut
AR7369 – Inlet Filter
DETHOSE-FIL – Detergent Hose with Filter
AL-QC3/8B – Quick Connect Coupler

Specifications:
Max GPM- 4
Max PSI- 4000
RPM- 3400
Shaft Size- 1″
Pump- RSV4G40HDF40EZ
Flange Gas Engine Flange – F40
Detergent Tube w/Filter- DETHOSE-FIL
Coupler- AL-QC3/8B
3/8″ M Nipple- AR7365
3/4″ F Nut- AR7366
Inlet Filter- AR7369
Applications- EZ Start Valve

This powerful Armor direct drive pump AMR-RSV4G40.U, lobed crankshaft plunger pump will push 4 GPM at 4000 PSI and is ideal for 9-15 HP 1” shafted gas engines. Shipped prefilled with synthetic oil, an easy start valve and thermal relief valve for low maintenance. Amor is a leading manufacturer of piston pumps for industrial washing and diaphragm pumps for agriculture used around the world.

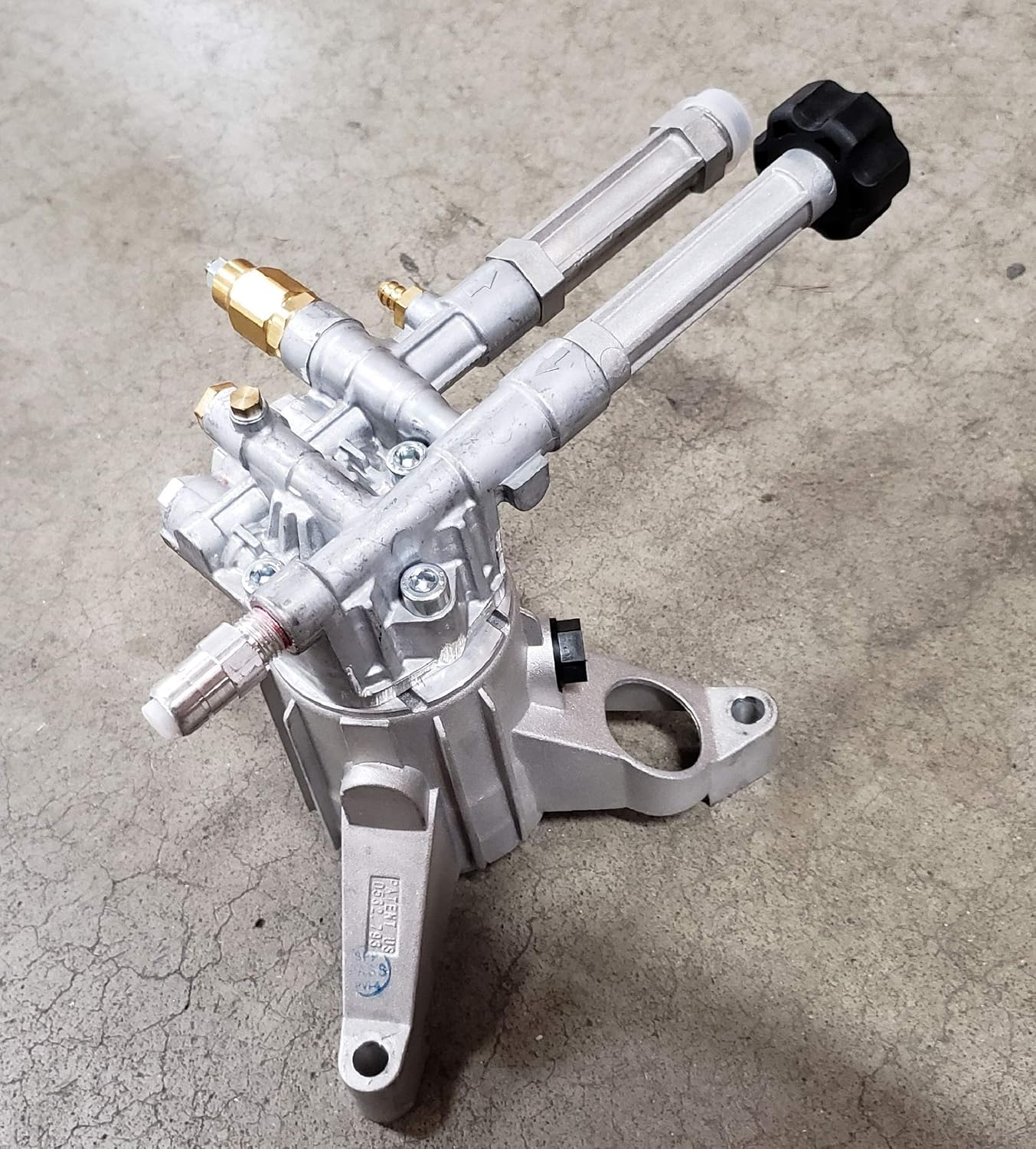

Pressure Washer Pump, 2800psi, Vertical 308653045 /308653052 2800 psi 2.5 gallons per minute Pre-filled with oil and ready to use Mounting Bolts Spacing between mounting bolts: 7 11/16″ – 6 3/16″ – 6 7/16″ 7/8 shaft Fits Honda GC135, GX140, GC160, Briggs and Kohler engines with 7/8 inch diameter shaft Will NOT fit 3/4” shaft motors, these motors require different pump Thermal Relief Valve IS Included but will need to be installed opposite the inlet fitting. WHEN MOUNTED, the inlet and outlet will point in the OPPOSITE DIRECTION as the spark plug. This part is compatible with the following machines: Homelite HL80833 3-N-1 Hi-Speed Gasoline Pressure Washer UT80709 Pressure Washer UT80911 Pressure Washer UT80911A Pressure Washer UT80709A Pressure Washer UT80835 3-N-1 Hi-Speed Pressure Washer UT80933 3-N-1 Hi-Speed Pressure Washer UT80993 Pressure Washer UT80993A 2700 PSI Gas Pressure Washer GC80747 G-Clean Pressure Washer HLCA80710 Pressure Washer HU80709 Pressure Washer HU80911 Pressure Washer HU80709A Pressure Washer HU80911A Pressure Washer HU80714 Pressure Washer HU80915 Pressure Washer HU80715 Pressure Washer HU80722 Pressure Washer HU80722A Pressure Washer HU80833 3-N-1 Hi-Speed Gasoline Pressure Washer HU80833A 3-N-1 Hi-Speed Gasoline Pressure Washer HUCA80709A Pressure Washer PS262311 Pressure Washer PS80944 Pressure Washer PS80946 Pressure Washer PS80979 Pressure Washer PS80979A Pressure Washer UT80993B Pressure Washer UT80993D Pressure Washer WF80710 Pressure Washer WF80911 Pressure Washer HL80835 3-N-1 Hi-Speed Gasoline Pressure Washer UT80993E Pressure Washer UT80993F Pressure Washer Ryobi RY80930 Pressure Washer

• Triplex High Pressure Power Washer Pump
• 3.1 GPM

AR North America direct drive gas Plunger pump 140° F – Max Water Temp 1/2” F – Inlet Thread 3/8”f – Discharge Thread 15 oz oil Capacity Specifications Max GPM 5 Max L/Min 18.3 Max PSI 4000 Ambar 275 Power EBHP 13.7 bore Dia mm 18 Stroke mm 8.6 Crankshaft ID Stamp 11 Inlet 1/2″ F outlet 3/8″ F Max Temp 140° F Oil Capacity (oz) 15 weight 21 rpm 3400 Shaft Size 1″ Shaft Version D Shaft Type Hollow
